Crosby® S-421T Wedge Sockets

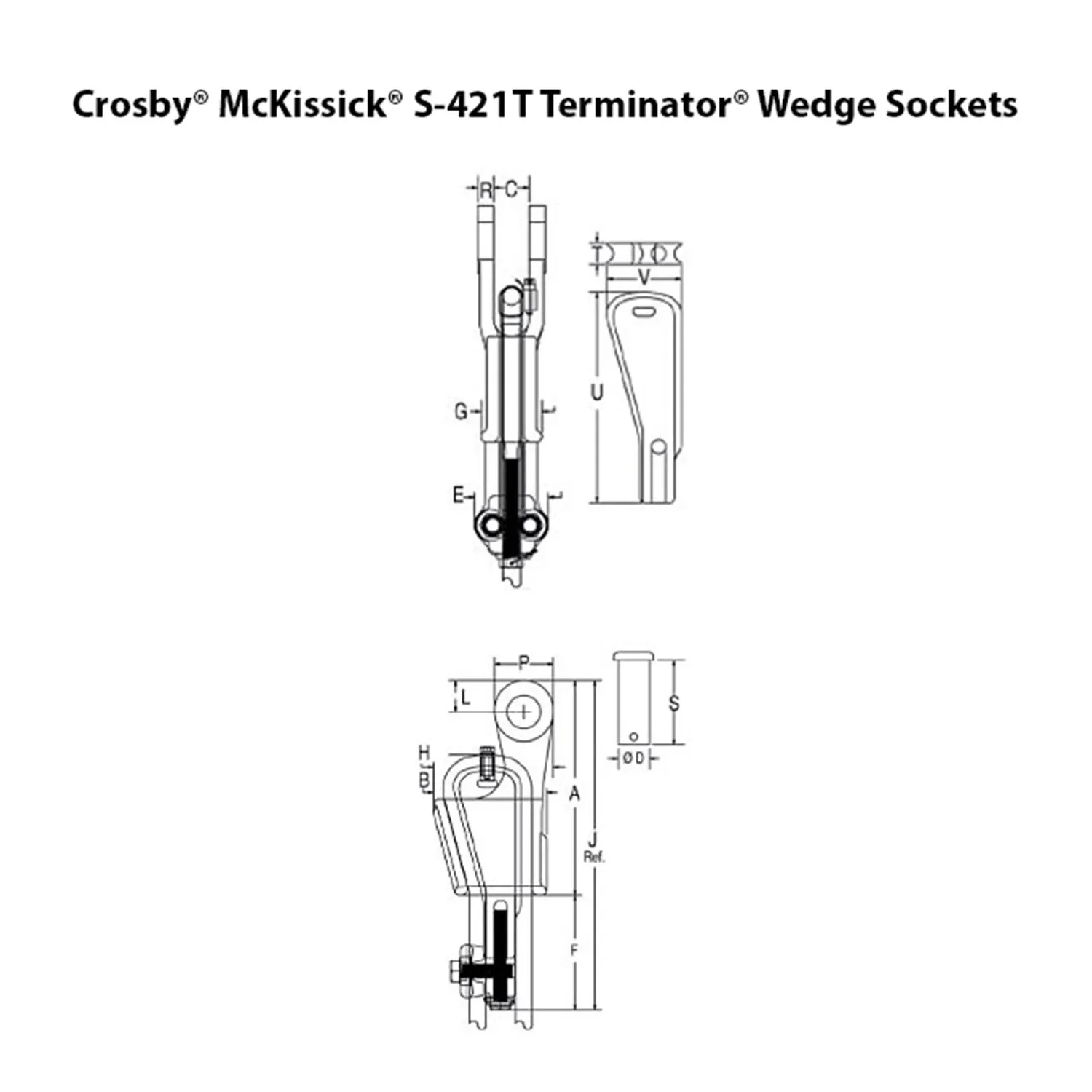

Dimensions for Crosby® McKissick® S-421T Terminator® Wedge Sockets

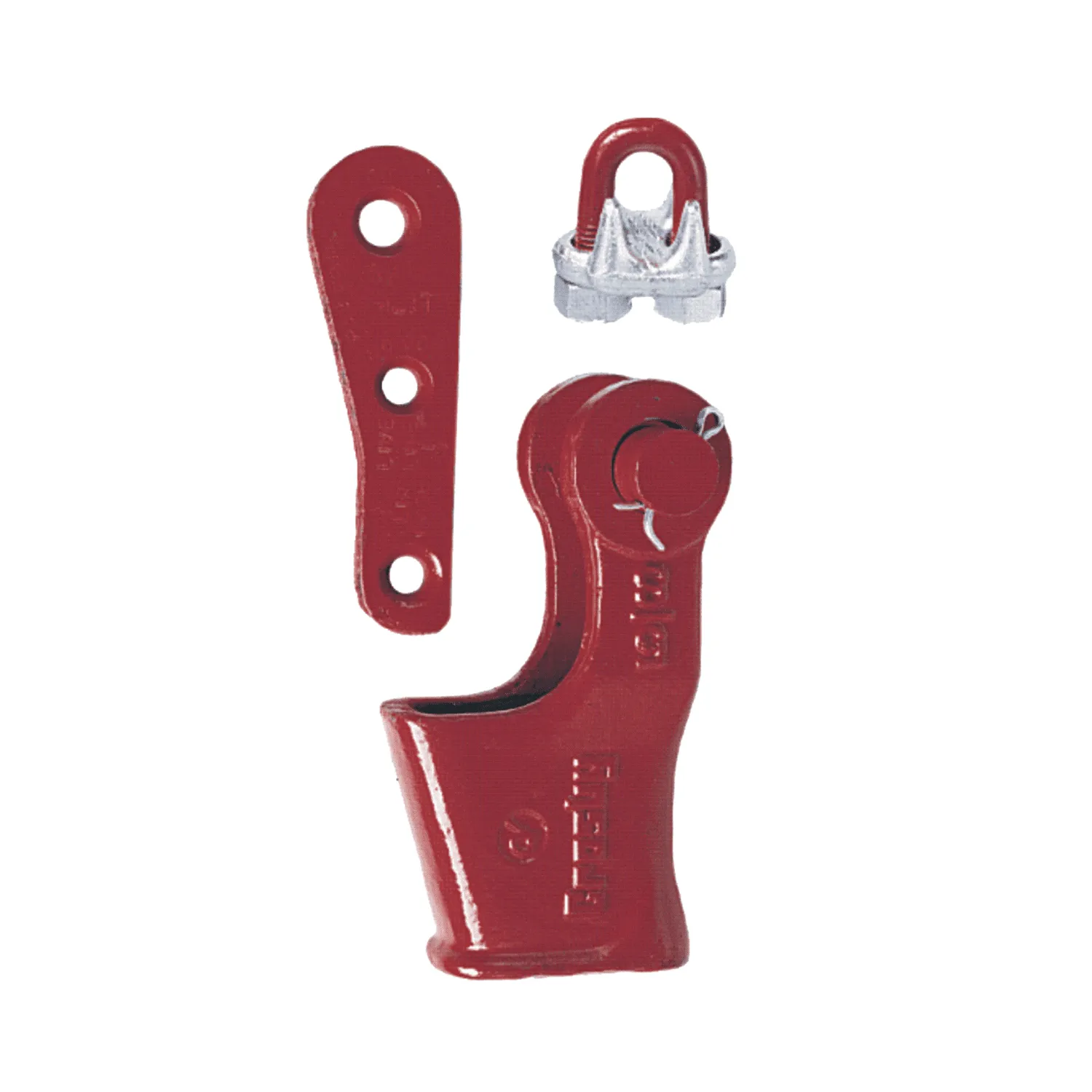

Assembly includes socket, wedge, pin and wire rope clip.

Wire Rope Dia.		Stock No.	Weight Each (lb)	Wedge Only		Standard Bolt, Nut & Cotter Assy
(in)	(mm)	Stock No.	Weight Each (lb)	Part No.	Weight Each (lb)	Part No.	Weight Each (lb)
3/8	9–10	1035000	3.30	1035555	0.50	2038971	0.38
1/2	11–13	1035009	6.10	1035564	1.05	2038972	0.69
5/8	14–16	1035018	10.5	1035573	1.79	2038974	1.15
3/4	18–19	1035027	16.4	1035582	2.60	2038976	1.91
7/8	20–22	1035036	24.8	1035591	4.00	2038978	3.23
1	24–26	1035045	35.5	1035600	5.37	2038980	5.40
1-1/8	28	1035054	48.8	1035609	7.30	2038982	7.50
1-1/4	30–32	1035063	71.5	1035618	10.60	2038984	10.34

Wire Rope Dia.		Assembly w/ Round Pin Stock No.	Assembly w/ Bolt/Nut/Cotter Stock No.	Dimensions (in)
(in)	(mm)	Assembly w/ Round Pin Stock No.	Assembly w/ Bolt/Nut/Cotter Stock No.	A	B	C +/-.09	D	G	H	J*	K*	L	P	R	S	T	U	V
3/8	9-10	1035000	1035203	5.69	2.72	.81	.81	1.38	3.06	7.80	1.88	.88	1.56	.44	2.13	.44	1.25	1.38
1/2	11-13	1035009	1035212	6.88	3.47	1.00	1.00	1.62	3.76	8.91	1.26	1.06	1.94	.50	2.56	.53	1.75	1.88
5/8	14-16	1035018	1035221	8.25	4.30	1.25	1.19	2.12	4.47	10.75	1.99	1.22	2.25	.56	3.25	.69	2.00	2.19
3/4	18-19	1035027	1035230	9.88	5.12	1.50	1.38	2.44	5.28	12.36	2.41	1.40	2.63	.66	3.63	.78	2.34	2.56
7/8	20-22	1035036	1035249	11.25	5.85	1.75	1.63	2.69	6.16	14.37	2.48	1.67	3.13	.75	4.31	.88	2.69	2.94
1	24-26	1035045	1035258	12.81	6.32	2.00	2.00	2.94	6.96	16.29	3.04	2.00	3.75	.88	4.70	1.03	2.88	3.28
1-1/8	28	1035054	1035267	14.38	6.92	2.25	2.25	3.31	7.62	18.34	2.56	2.25	4.25	1.00	5.44	1.10	3.25	3.56
1-1/4	30-32	1035063	1035276	16.34	8.73	2.62	2.50	3.56	9.39	20.48	2.94	2.34	4.50	1.06	6.13	1.19	4.62	4.94
