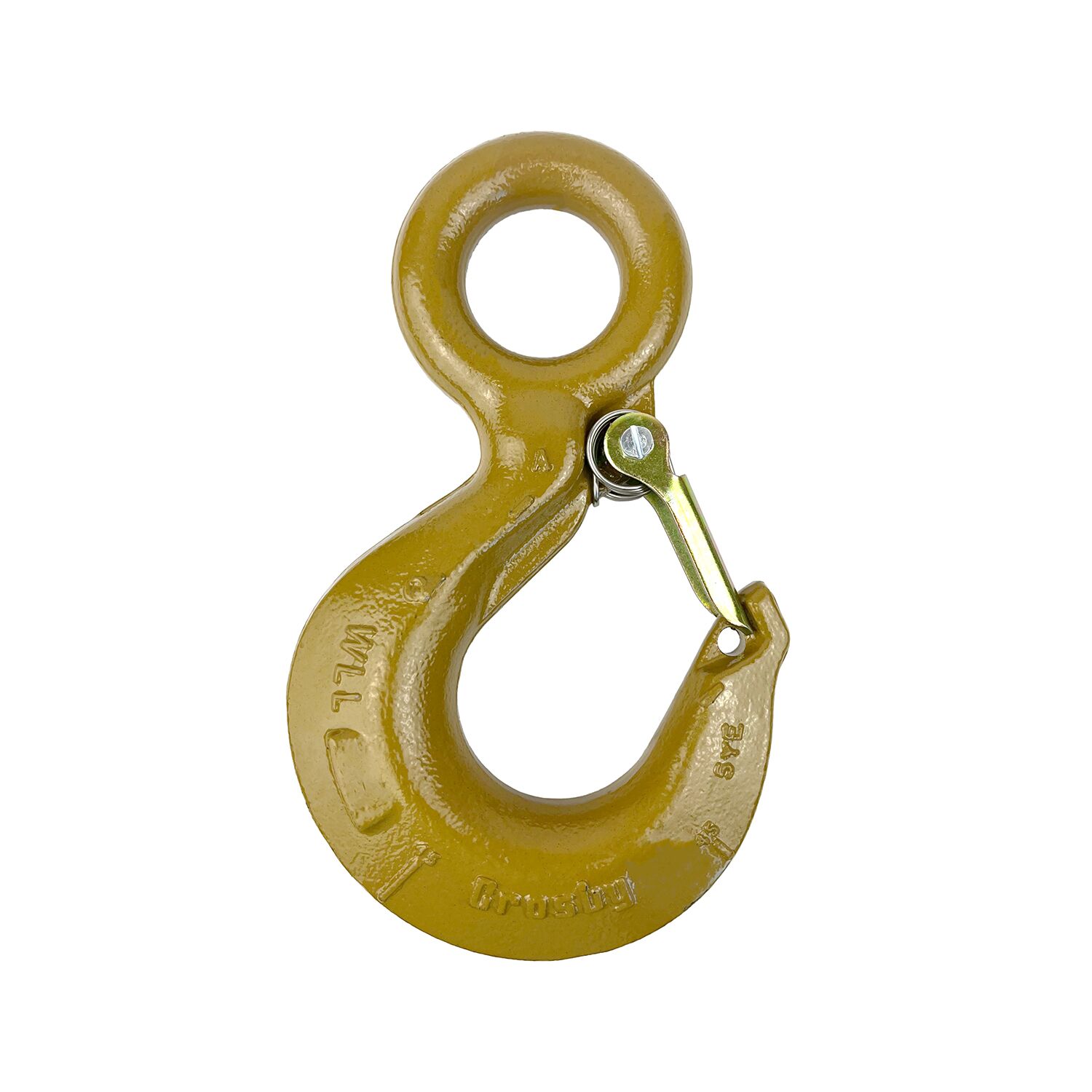

L-320AN Eye Hook
| Hook ID Code* | Dimensions (in) | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C | D | F | G | J | K | M | N | O † | O2 †† | Q | T † | T2 †† | AA** | ||
| †D | 3.34 | 2.83 | 1.25 | .73 | .90 | .63 | .63 | .36 | .89 | – | .75 | .87 | – | 1.50 | |
| †F | 3.81 | 3.11 | 1.38 | .84 | .93 | .71 | .71 | .42 | .91 | – | .91 | .98 | – | 2.00 | |
| †G | 4.14 | 3.53 | 1.50 | 1.00 | 1.06 | .88 | .88 | .55 | 1.00 | – | 1.13 | 1.03 | – | 2.00 | |
| †H | 4.69 | 3.97 | 1.63 | 1.13 | 1.19 | .94 | .94 | .58 | 1.09 | – | 1.25 | 1.16 | – | 2.00 | |
| †I | 5.77 | 4.81 | 2.00 | 1.44 | 1.47 | 1.31 | 1.31 | .72 | 1.36 | 1.00 | 1.56 | 1.53 | 1.50 | 2.50 | |
| †J | 7.37 | 6.27 | 2.50 | 1.81 | 1.75 | 1.66 | 1.66 | .90 | 1.61 | 1.31 | 2.00 | 1.96 | 1.88 | 3.00 | |
| †K | 9.07 | 7.45 | 3.00 | 2.25 | 2.22 | 1.88 | 1.63 | 1.11 | 2.08 | 1.81 | 2.44 | 2.47 | 2.25 | 4.00 | |
| †L | 10.08 | 8.30 | 3.25 | 2.59 | 2.50 | 2.19 | 1.94 | 1.27 | 2.27 | 2.00 | 2.84 | 2.62 | 2.31 | 4.00 | |
| †N | 12.53 | 10.04 | 4.25 | 3.00 | 3.00 | 2.69 | 2.38 | 1.56 | 3.02 | 2.75 | 3.50 | 2.83 | 2.56 | 5.00 | |
| O | 14.06 | 13.62 | 5.00 | 3.62 | 3.50 | 3.00 | 3.00 | 1.75 | 3.25 | – | 3.50 | 3.44 | – | 6.50 | |
| P | 18.19 | 14.06 | 5.38 | 4.56 | 3.75 | 3.19 | 3.00 | 2.00 | 3.75 | – | 4.50 | 3.88 | – | 7.00 | |
| S | 20.12 | 15.44 | 6.00 | 5.00 | 4.00 | 3.75 | 3.25 | 2.18 | 3.82 | – | 4.94 | 4.75 | – | 8.00 | |
| T | 23.72 | 18.50 | 7.00 | 6.00 | 5.00 | 3.91 | 3.25 | 2.53 | 4.12 | – | 5.69 | 5.69 | – | 10.00 | |
*Deformation indicators. †3/4t carbon though 22t alloy dimensions shown are for S-4320 Latch Kits. Dimensions for “O” frame size and larger are for PL Latch Kits. ††Dimensions are for PL-N latch kits. For more information, see Warnings & Applications.
Crosby® Catalog Information for L-320AN
L-322AN Swivel Hooks with Latch
| Working Load Limit (t) | Hook ID Code* | L-322CN Stock No. | L-322AN Stock No. | Weight Each (lb) | Dimensions (in) | Rep. Latch Stock No. | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Carbon | Alloy | A | B | C | D | F | G | H | J | K | L | M | O† | R | S | AA* | |||||
| 0.75 | 1 | D | 1048603 | 1048807 | .75 | 2.00 | .82 | 1.25 | 2.86 | 1.25 | .73 | .81 | .93 | .63 | 5.66 | .63 | .89 | 4.55 | .38 | 1.50 | 1096325 |
| 1 | 1.5 | F | 1048612 | 1048816 | 1.25 | 2.50 | 1.31 | 1.50 | 3.15 | 1.38 | .84 | .94 | .97 | .71 | 6.71 | .71 | .91 | 5.37 | .50 | 2.00 | 1096374 |
| 1.5 | 2 | G | 1048612 | 1048825 | 2.00 | 3.00 | 1.50 | 1.75 | 3.59 | 1.50 | 1.00 | 1.16 | 1.31 | .88 | 8.00 | .88 | 1.00 | 6.01 | .63 | 2.00 | 1096421 |
| 2 | 3 | H | 1048630 | 1048834 | 2.30 | 3.00 | 1.50 | 1.75 | 4.00 | 1.62 | 1.13 | 1.31 | 1.19 | .94 | 8.25 | .94 | 1.09 | 6.50 | .63 | 2.00 | 1096468 |
| 3 | 5 | I | 1048639 | 1048840 | 4.90 | 3.50 | 1.64 | 2.00 | 4.84 | 2.00 | 1.44 | 1.63 | 1.50 | 1.13 | 9.66 | 1.13 | 1.36 | 7.50 | .75 | 2.50 | 1096515 |
| 5 | 7 | J | 1048648 | 1048859 | 10.29 | 4.56 | 2.29 | 2.50 | 6.28 | 2.50 | 1.81 | 2.06 | 1.78 | 1.66 | 12.47 | 1.44 | 1.61 | 9.63 | 1.00 | 3.00 | 1096562 |
| 7.5 | 11 | K | 1048657 | 1048868 | 19.40 | 5.00 | 2.44 | 2.75 | 7.54 | 3.00 | 2.25 | 2.63 | 2.41 | 1.88 | 14.75 | 1.63 | 2.08 | 11.37 | 1.13 | 4.00 | 1096609 |
| 10 | 15 | L | 1048666 | 1048877 | 23.25 | 5.62 | 2.48 | 3.12 | 8.34 | 3.25 | 2.59 | 2.94 | 2.62 | 2.19 | 16.40 | 1.94 | 2.27 | 12.25 | 1.25 | 4.00 | 1096657 |
| 15 | 22 | M | 1048675 | 1048886 | 47.00 | 7.10 | 3.76 | 4.10 | 10.34 | 4.25 | 3.00 | 3.50 | 3.41 | 2.50 | 21.36 | 2.38 | 3.02 | 16.71 | 1.50 | 5.00 | 1096704 |
| – | 30 | O | – | 1048898 | 70.50 | 7.10 | 3.76 | 4.10 | 13.62 | 5.00 | 3.61 | 4.63 | 4.00 | 3.00 | 23.25 | 3.00 | 3.62 | 18.01 | 1.50 | 6.50 | 1090161 |
All carbon swivel hooks have a 5:1 Design Factor and Proof Load is 2 times the Working Load Limit. Alloy swivel hooks 1t through 22t have a 4.5:1 Design Factor and Proof Load is 2.5 times the Working Load Limit. Alloy swivel hooks of 30t capacity have a 4:1 Design Factor and Proof Load is 2 times the Working Load Limit. *Deformation indicators †Dimensions for hooks 3/4t carbon through 22t alloy are for S-4320 latch kits. Dimensions for hooks 30t alloy are for 4055 latch kit. For more information, see Warnings & Applications.
Crosby® Catalog Information for L-3322AN
L-3322B Swivel Hooks with Bearing
| Working Load Limit (t) | Hook ID Code* | Stock No. | Weight Each (lb) | Dimensions (in) | Rep. Latch Stock No. | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | F | G | H | J | K | L | M | O | R | S | AA* | |||||
| 2 | GA | 1028609 | 2.5 | 3.00 | 1.50 | 1.75 | 3.59 | 1.50 | 1.00 | 1.16 | 1.06 | .88 | 7.64 | .88 | 1.00 | 6.01 | .63 | 2.00 | 1096421 |
| 3 | HA | 1028618 | 3.8 | 3.50 | 1.56 | 2.00 | 4.00 | 1.62 | 1.13 | 1.31 | 1.19 | .94 | 8.60 | .94 | 1.09 | 6.72 | .75 | 2.00 | 1096468 |
| 5 | IA | 1028627 | 7.0 | 4.00 | 1.56 | 2.25 | 4.84 | 2.00 | 1.44 | 1.63 | 1.50 | 1.31 | 10.32 | 1.13 | 1.36 | 8.00 | .88 | 2.50 | 1096515 |
| 7 | JA | 1028636 | 14.0 | 5.00 | 1.94 | 2.75 | 6.27 | 2.50 | 1.81 | 2.06 | 1.78 | 1.66 | 12.84 | 1.44 | 1.61 | 9.90 | 1.13 | 3.00 | 1096562 |
| 11 | KA | 1028645 | 22.3 | 5.62 | 2.05 | 3.12 | 7.54 | 3.00 | 2.25 | 2.63 | 2.41 | 1.88 | 15.24 | 1.63 | 2.08 | 11.74 | 1.25 | 4.00 | 1096609 |
| 15 | LA | 1028654 | 36.0 | 7.12 | 3.62 | 4.10 | 8.33 | 3.25 | 2.59 | 2.94 | 2.62 | 2.19 | 18.64 | 1.94 | 2.27 | 14.41 | 1.50 | 4.00 | 1096657 |
4.5:1 Design Factor. Maximum allowable proof load is 2.5 times Working Load Limit. *Deformation indicators. For more information, see Warnings & Applications.
