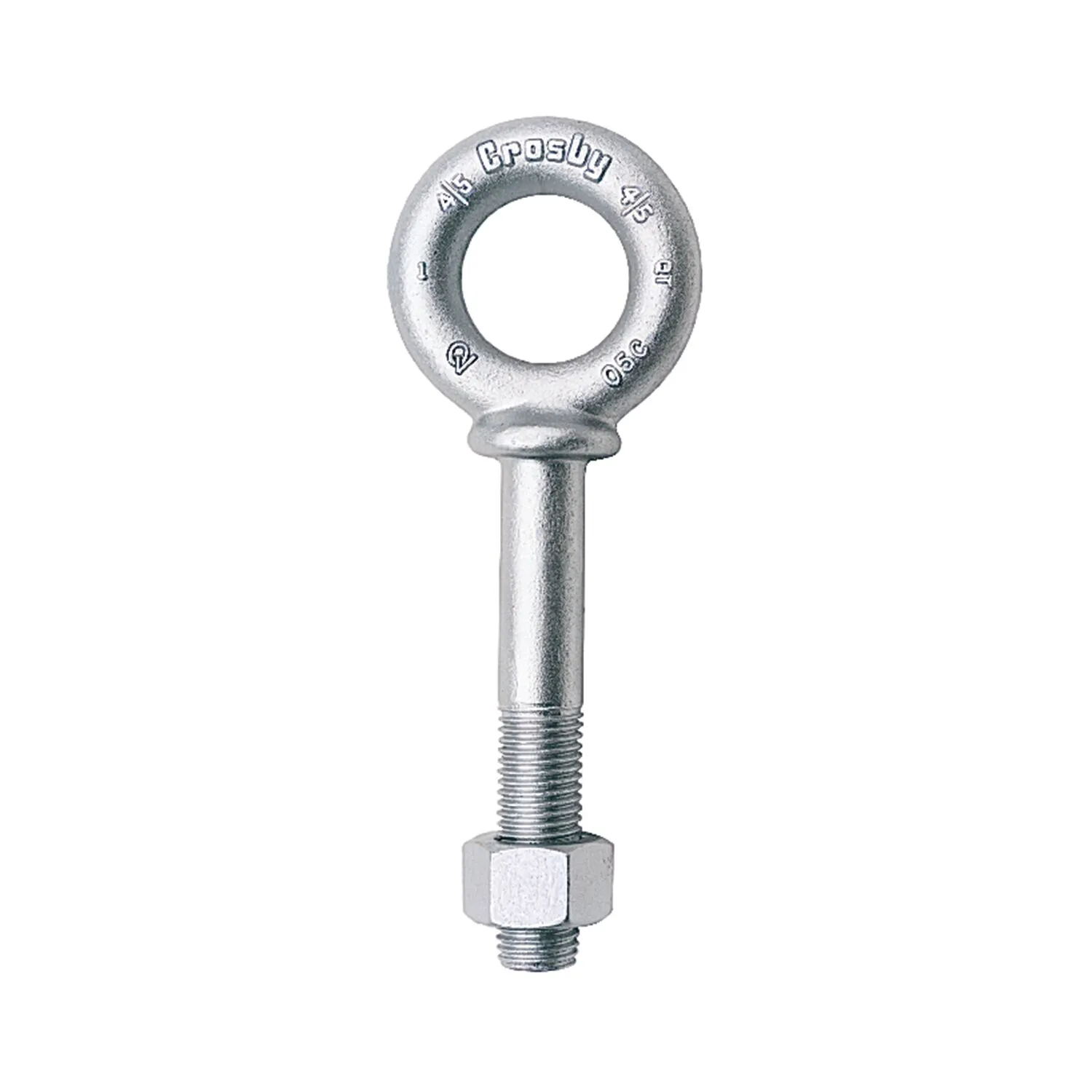

G-277 Shoulder Nut Eye Bolts
| Shank Diameter & Length (in) | Stock No. | Working Load Limit (lb) | Weight Each (lb) | Dimensions (in) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | J | ||||
| 5/16 x 2-1/4 | 1045050 | 1200 | 0.13 | 0.31 | 0.62 | 1.12 | 0.25 | 1.50 | 2.25 | 3.50 | 0.69 | 0.56 |
| 5/16 x 4-1/4 | 1045078 | 1200 | 0.19 | 0.31 | 0.62 | 1.12 | 0.25 | 2.50 | 4.25 | 5.50 | 0.69 | 0.56 |
| 3/8 x 2-1/2 | 1045096 | 1550 | 0.21 | 0.38 | 0.75 | 1.32 | 0.31 | 1.50 | 2.50 | 3.97 | 0.78 | 0.66 |
| 3/8 x 4-1/2 | 1045112 | 1550 | 0.25 | 0.38 | 0.75 | 1.38 | 0.31 | 2.50 | 4.50 | 5.97 | 0.78 | 0.66 |
| 1/2 x 3-1/4 | 1045130 | 2600 | 0.43 | 0.50 | 1.00 | 1.75 | 0.38 | 1.50 | 3.25 | 5.12 | 1.00 | 0.91 |
| 1/2 x 6 | 1045158 | 2600 | 0.57 | 0.50 | 1.00 | 1.75 | 0.38 | 3.00 | 6.00 | 7.88 | 1.00 | 0.91 |
| 5/8 x 4 | 1045176 | 5200 | 0.69 | 0.62 | 1.25 | 2.25 | 0.50 | 2.00 | 4.00 | 6.44 | 1.31 | 1.12 |
| 5/8 x 6 | 1045194 | 5200 | 1.02 | 0.62 | 1.25 | 2.25 | 0.50 | 3.00 | 6.00 | 8.44 | 1.31 | 1.12 |
| 3/4 x 4-1/2 | 1045210 | 7200 | 1.45 | 0.75 | 1.50 | 2.75 | 0.62 | 2.00 | 4.50 | 7.44 | 1.56 | 1.38 |
| 3/4 x 6 | 1045238 | 7200 | 1.68 | 0.75 | 1.50 | 2.75 | 0.62 | 3.00 | 6.00 | 8.94 | 1.56 | 1.38 |
| 7/8 x 5 | 1045256 | 10000 | 2.25 | 0.88 | 1.75 | 3.00 | 0.75 | 2.50 | 5.00 | 8.14 | 1.88 | 1.56 |
| 1 x 6 | 1045292 | 13300 | 3.66 | 1.00 | 2.00 | 3.75 | 0.88 | 3.00 | 6.00 | 9.97 | 2.09 | 1.81 |
| 1 x 9 | 1045318 | 13300 | 4.23 | 1.00 | 2.00 | 3.75 | 0.88 | 4.00 | 9.00 | 12.97 | 2.09 | 1.81 |
| 1-1/4 x 8 | 1045336 | 21000 | 6.50 | 1.25 | 2.50 | 4.50 | 1.00 | 4.00 | 9.00 | 12.72 | 2.47 | 2.28 |
| 1-1/4 x 12 | 1045354 | 21000 | 7.95 | 1.25 | 2.50 | 4.50 | 1.00 | 6.00 | 12.00 | 16.72 | 2.47 | 2.28 |
| 1-1/2 x 15 | 1045372 | 24000 | 14.25 | 1.50 | 3.00 | 5.50 | 1.25 | 6.00 | 15.00 | 20.75 | 3.00 | 2.75 |
