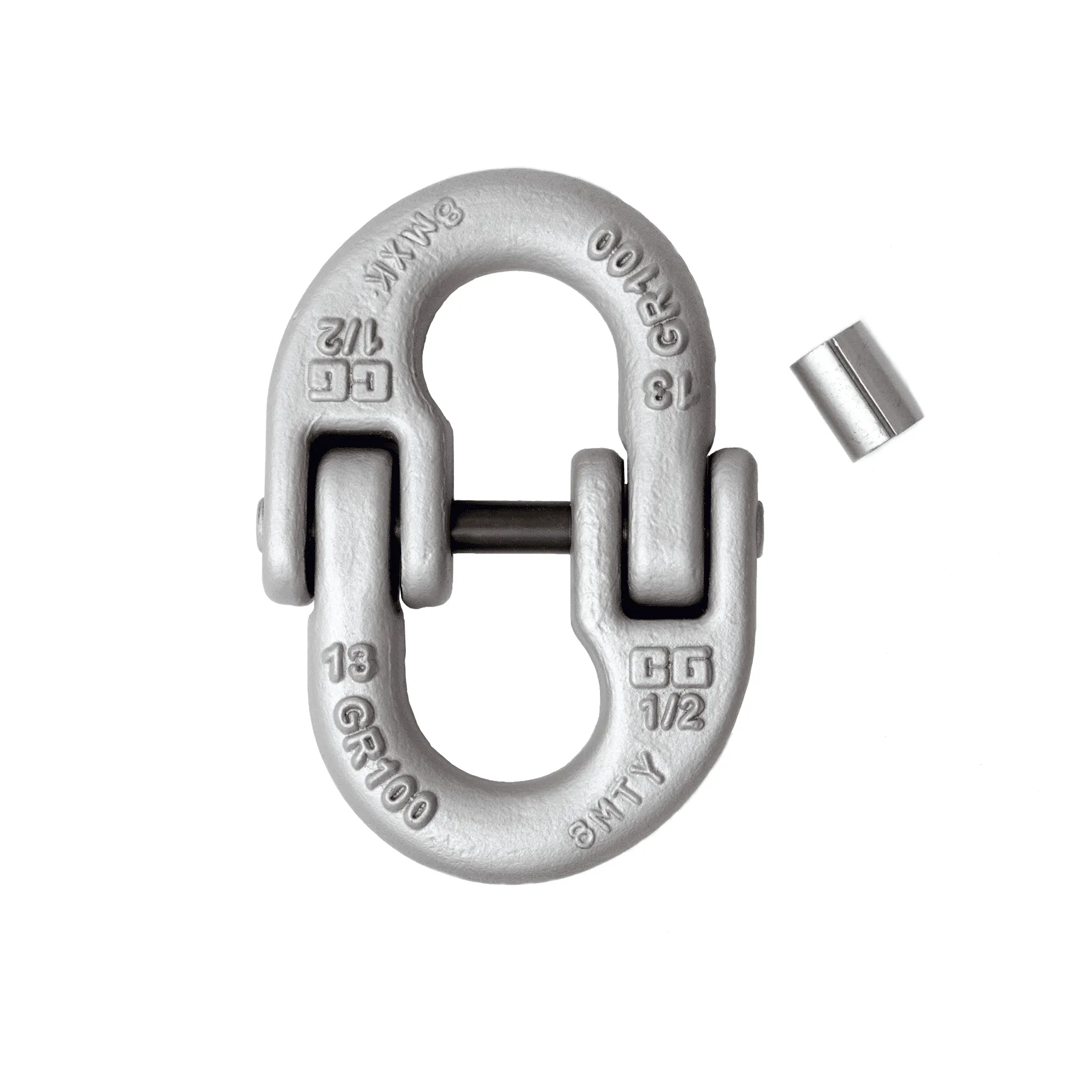

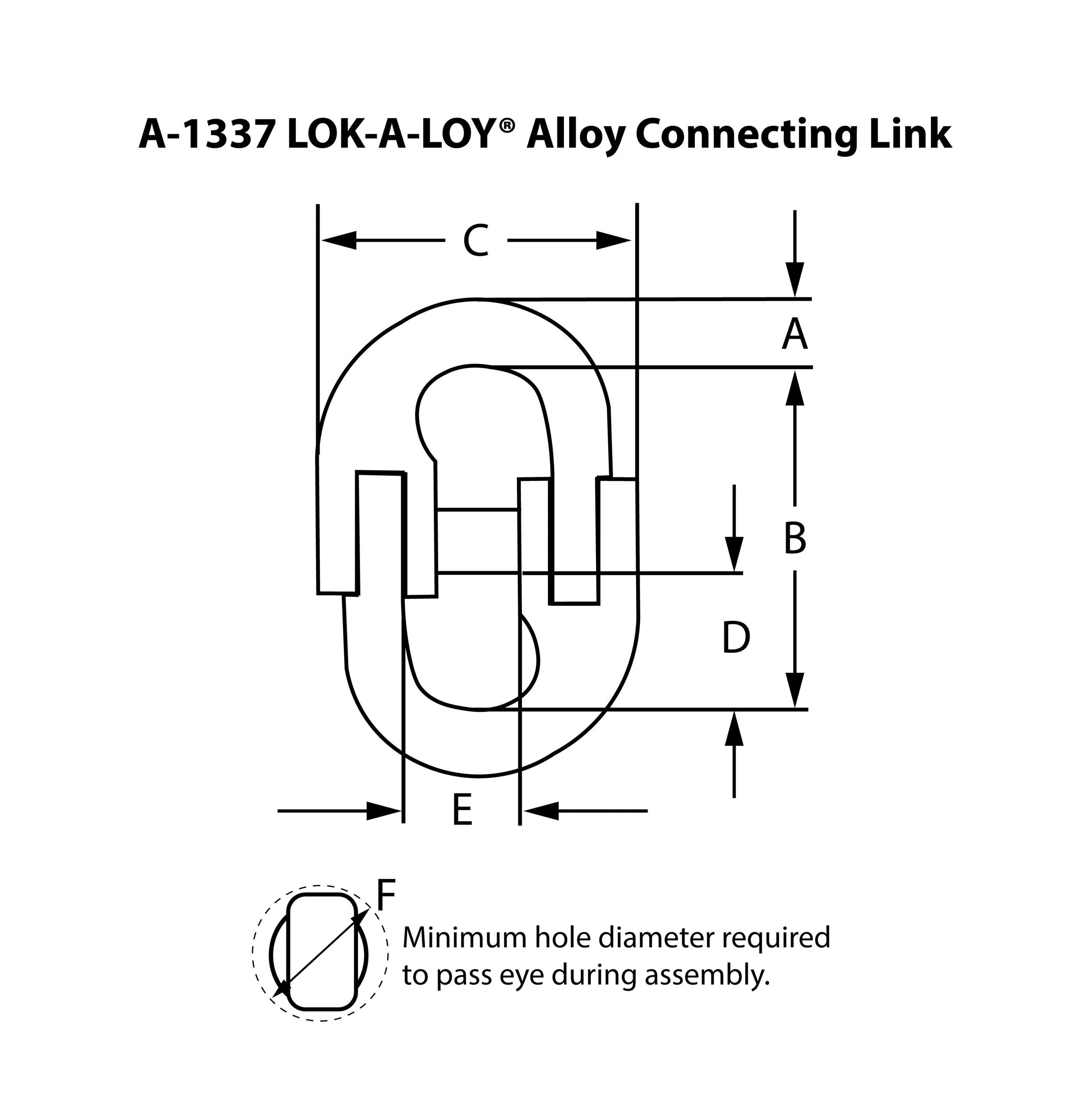

Crosby® A-1337 Connecting Link Dimensions
| Chain Size | (mm) | Stock No. | Pkg. Qty. | Weight Each (lb) | Working Load Limit (lb) | Dimensions (in) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | ||||||
| 9/32 (1/4) | 7 | 1015104 | 60 | 0.29 | 4300 | 0.38 | 1.94 | 2.00 | 0.80 | 0.68 | 0.53 |
| 5/16 | 8 | 1015113 | 50 | 0.42 | 5700 | 0.37 | 2.36 | 2.13 | 0.99 | 0.72 | 0.59 |
| 3/8 | 10 | 1015122 | 40 | 0.77 | 8800 | 0.51 | 2.65 | 2.55 | 1.09 | 0.91 | 0.73 |
| 1/2 | 13 | 1015136 | 12 | 1.60 | 15000 | 0.68 | 3.46 | 3.39 | 1.45 | 1.13 | 0.89 |
| 5/8 | 16 | 1015145 | 10 | 3.10 | 22600 | 0.78 | 4.25 | 4.00 | 1.77 | 1.34 | 1.20 |
| 3/4 | 20 | 1015154 | 1 | 6.39 | 35300 | 1.01 | 5.14 | 5.30 | 2.15 | 1.64 | 1.56 |
| 7/8 | 22 | 1015163 | 1 | 7.85 | 42700 | 1.09 | 5.46 | 5.78 | 2.27 | 1.97 | 1.55 |
| 1 | 26 | 1015172 | 1 | 11.05 | 59700 | 1.24 | 5.94 | 6.50 | 2.41 | 2.21 | 1.88 |
| 1-1/4 | 32 | 1015181 | 1 | 21.00 | 90400 | 1.56 | 7.43 | 7.60 | 3.07 | 2.57 | 2.22 |
4:1 Design Factor
